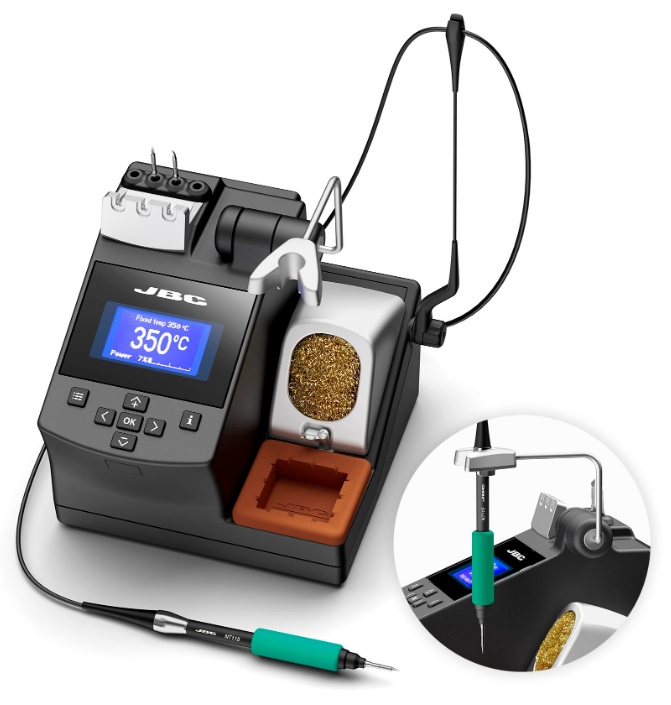

CDN Station High-Precision Soldering
CDN Station High-Precision Soldering
Soldering beyond limits
This station is designed for highest-precision jobs in any micro-soldering application, offering maximum control working under the microscope.
It provides all the advantages of JBC Most Efficient Soldering System in the smallest footprint:
-
- • JBC Intelligent Heat Management which provides the best soldering quality and, with Sleep & Hibernation Modes extend tip life till 5 times.
-
- • Complete Tip Cleaning System, with exclusive Cartridge Exchanger, which increases efficiency.
- • Connectivity:
- – Fume Extractor
- – Data Download
- – Software Updates
- – Traceability
- • NT115 Nano Handle which works with our wide range of C115 Cartridges.
*Cartridge not included
Description
Additional Info
Description
REFERENCES
CDN-9QF 100V
CDN-1QF 120V
CDN-2QF 230V
PRODUCT COMPOSITION
SPECIFICATIONS
Peak power: 25W
Selectable temperature: 90 to 450 ºC / 190 to 840 ºF
Temperature accuracy: ±3%
ESD safe: Meet ANSI/ESD S20.20-2014
Equipotential bonding: Connection to EPA
Tip-to-ground resistance: <2 ohms
Tip-to-ground voltage: <2 mV RMS
USB-B: PC communications
FAE / Robot connector: Remote control or FAE Fume Extractor connection
WEIGHT AND DIMENSIONS
Control Unit
170 x 176 x 145 mm / 2.70 kg.
6.69 x 6.93 x 5.71 in / 5.95 lb.
Package
234 x 234 x 258 mm / 3.27 kg.
9.21 x 9.21 x 10.16 in / 7.21 lb.
