XL6500 Inline X-Ray Inspection Machine

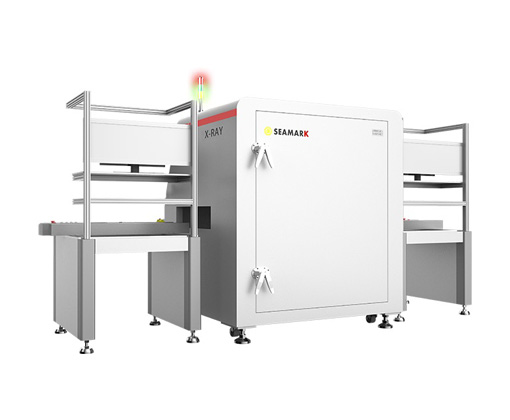

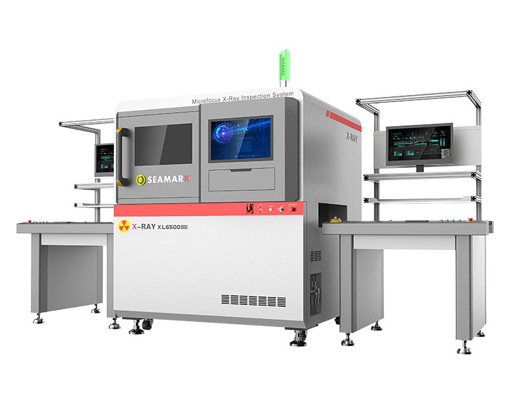

XL6500 is an SMT inline micro-focus X-ray inspection machine for electronic components. This automated X-Ray inspection machine can be directly connected to the SMT production line, or it can be used offline with the loading and unloading conveyors. Fully automatic judgment and inspection are carried out for the characteristic area of the PCB or the designated device.
Description
Additional Info
Description
Advantages of XL6500 Inline X-ray Inspection Machine
- Automatic sub-line inspection of LED chip packaging.
- Fully automatic online inspection of IGBT chips.
- 130KV 5um closed X-ray tube, long life, maintenance-free.
- Use 2.3 million pixel high-resolution digital flat-panel detector.
- Fully automatic online inspection of IC/BGA semi-conductor devices, SMT and PTU packages, sensors and other fields.
- Fully automatic online inspection of large-size PCB boards and PCBA solder joints.
- Simple operation of template setting guaranteed safe operation. Color image navigation. Support image stitching function (optional). Upgradable 3D module (industrial CT) (optional).
Specification Of ZM XL6500 Online X-Ray Inspection Machine
| X-Ray Tube Source Specification | |
| Type | Sealed Micro-Focus X-Ray Tube |
| Voltage | 90 KV (130KV optional) |
| Operating Voltage Range | 40-90KV/130KV |
| Operating Current Range | 10-200 μA/300μA |
| Max Output Power | 8 W/39W |
| Micro Focus Spot Size | 5-15μm |
| Flat Panel Detector Specification | |
| Type | TFT Industrial Dynamic FPD |
| Pixel Matrix | 1536×1536 |
| Field of View | 130mm×130mm |
| Resolution | 5.8Lp/mm |
| Frame（1×1) | 20fps |
| A/D Conversion Bit | 16bits |
| Dimensions | L1600mm×W1700mm×H2100mm |
| Input Power | 220V 10A/110V 15A 50-60HZ |
| Max Sample Size | 510mm×650mm |
| Control System | Industrial PC WIN7/ WIN10 64bits |
| Net Weight | Approx 2350KG |
| Radiation | ＜1μSv/h |
