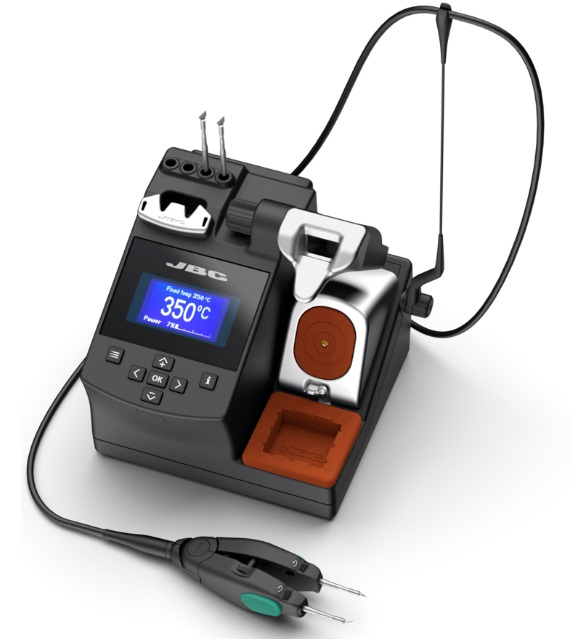

CP Station Precision Rework
Ideal for soldering and reworking SMT chip components, small / medium SOP and dual line components.
It provides all the advantages of the JBC Most Efficient Soldering System in the smallest footprint:
-
- • JBC Intelligent Heat Management provides the best soldering quality and with, Sleep & Hibernation Modes extend tip life till 5 times.
-
- • Complete Cleaning System, with exclusive fast and safe Cartridge exchanger.
-
- • Connectivity:
- – Fume Extractor
- – Data Download
- – Software Updates
- – Traceability
- • Connectivity:
- • Includes AM120 Adjustable Micro Tweezers that works with our wide range of C120 Cartridges.
*Cartridge not included
Description
Additional Info
Description
REFERENCES
CP-9QF 100 V
CP-1QF 120 V
CP-2QF 230 V
PRODUCT COMPOSITION
1CP Control Unit with AM120 Adjustable Micro Tweezers
(Cartridges not included)
SPECIFICATIONS
Nominal power: 90W
Peak power (Tool): 80 W
Selectable temperature: 90 to 450 ºC / 190 to 840 ºF
Idle temp. stability (still air): ±1.5ºC / ±3ºF (Meets and exceed IPC J-STD-001)
Temperature accuracy; ±3% (Using reference cartridge)
Temp. adjustment: ±50ºC / ±90ºF (Through station menu setting)
Tip-to-ground resistance; <2 ohms
Tip-to-ground voltage; <2 mV RMS
USB-B: PC communications
FAE / Robot connector: Remote control or FAE Fume Extractor connection
Earthing fuse: F 1.25A
ESD safe: Meet ANSI/ESD S20.20-2021
WEIGHT AND DIMENSIONS
Control Unit
170 x 176 x 145 mm / 2.70 kg.
6.69 x 6.93 x 5.71 in / 5.96 lb.
Package
234 x 234 x 258 mm / 3.14 kg.
9.21 x 9.21 x 10.16 in / 6.92 lb.
