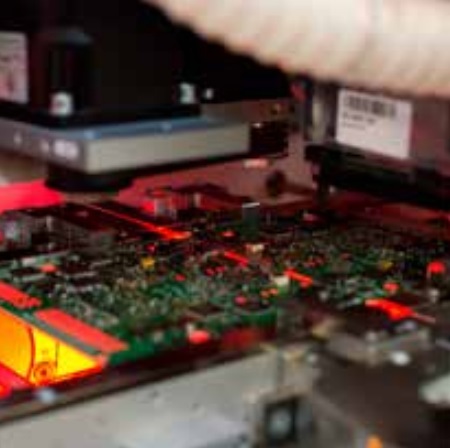

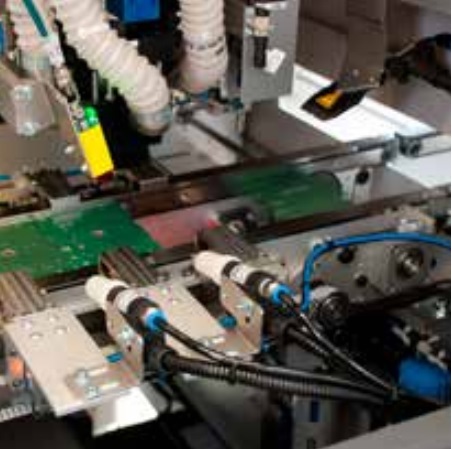

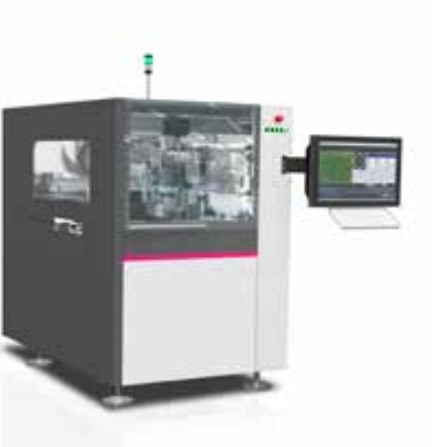

The DIVISIO 3100 is an automatic inline depaneling system with the smallest footprint. It is the ideal solution for separating single-row, frameless panels. The machine has an X/Y/Z-axis system above the transport level and can be equipped with a saw or router. PCB positioning is done with an integrated stopper unit mounted at the X-axis. Therefore routing could be done at free definable Ypositions. The restriction is that no waste could be handled (e.g. borders, waste corners). With the divided transport system inside the machine, the PCB can be separated. Subsequently, the cut PCB can be transferred out of the machine. The manual width adjustment is done by a clamping lever.

Features

• Linear motors for the highest dynamics and accuracy
• Segmental inlet
• Complete tool management
• Breakage control
• Length verification
• Diameter check
• Life span monitoring
• Dynamic utilization of full router bit
• Automatic tool change
• Ionization unit
• Automatic maintenance schedule

Options

• Saw module or routing spindle 500W
• ASYCAM CAD data conversion
• Dust extraction
• Camera system
• Fiducial recognition
• Cut inspection
• Teach function
• Correction function
• Bad mark recognition
• Code read
• Automatic width adjustment
• MES interface
