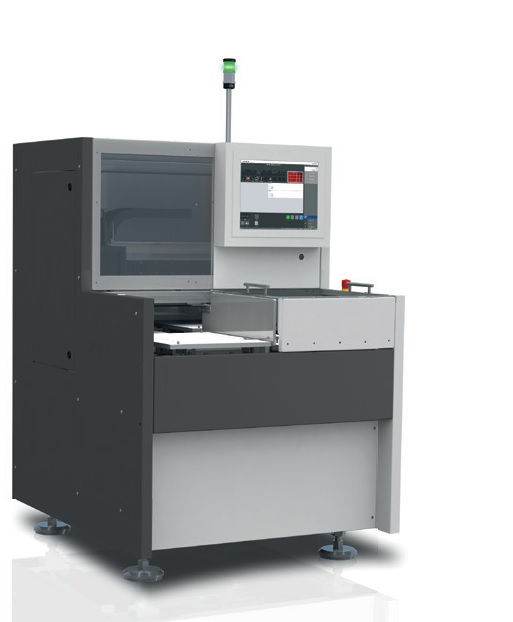

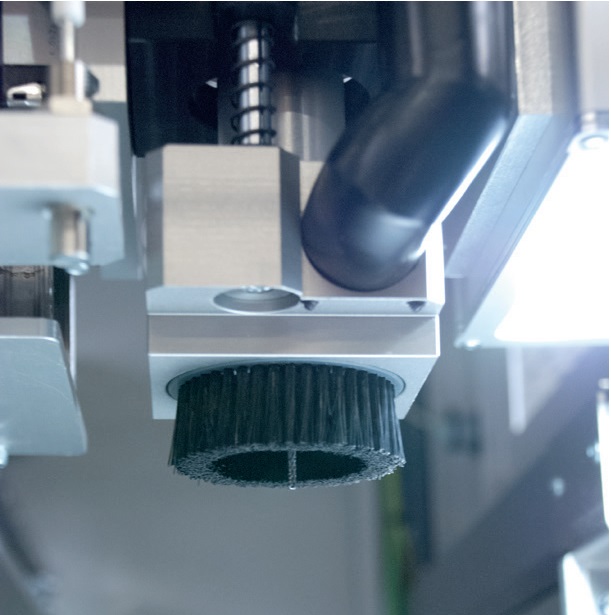

The DIVISIO 1000 is the ideal entry-level machine for low-stress, automatic PCB depaneling applications. With a footprint of only 1.2 m² and a working area of 2 times 350 mm x 400 mm, it is the smallest solution for depaneling with a milling cutter. The machine is ideal for the production of prototypes, small batches and as a backup for inline production. The dynamic milling axis is installed above the 2 drawer shuttle system. The X and Y-axis are driven with linear motors whereas the Z-axis is pneumatic driven. What makes this system particularly interesting is the standard integration of a camera system for fiducial recognition and image-guided program generation.

Features

• Camera
• Fiducial recognition
• Program creating with teach function (VTS)
• Camera correction (VPC)
• DMC reading (to max.9x16mm)
• X- and Y-axis with high-end linear motors
• Pneumatic Z-axis

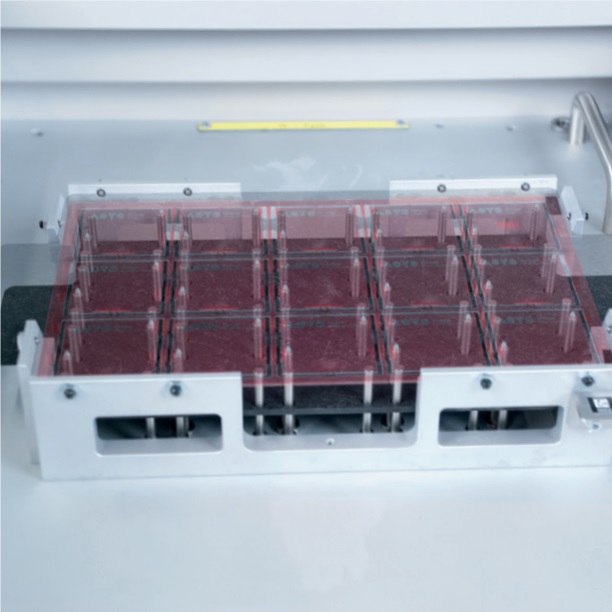

• 2 drawer shuttle system
• Manual tool change
• Tool management
• Life span monitoring
• Automatic maintenance schedule

  Options

• Program creation with ASYCAM CAD import
• Ionization unit
• Vacuum exhaust system
• Adapter technology
• Product-specifi c adapters
• Flexible adapter technology
• Adapter coding by barcode
• Z-axis servo-motor driven

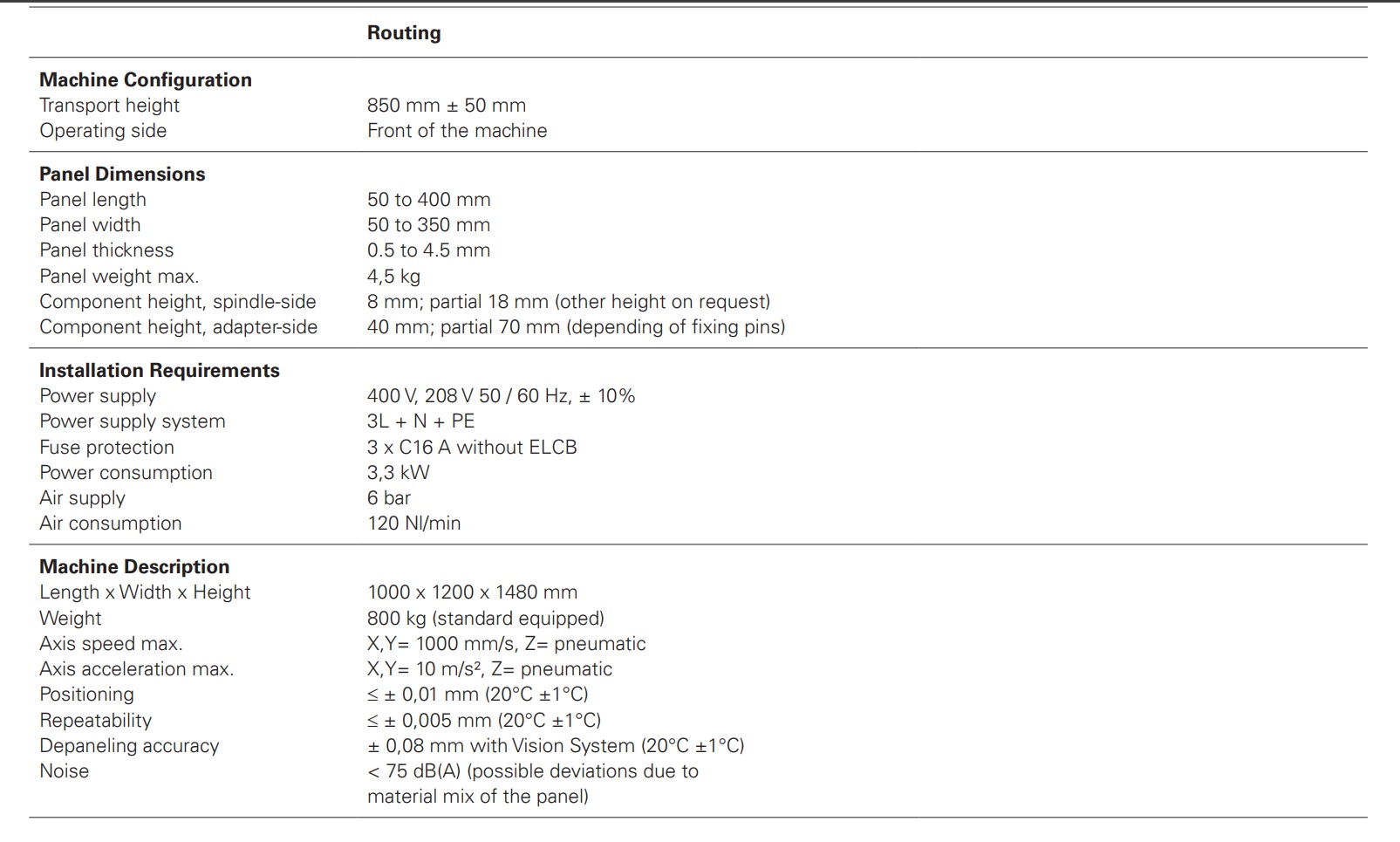

The DIVISIO 1000 is the ideal entry-level machine for low-stress, automatic PCB depaneling applications. With a footprint of only 1.2 m² and a working area of 2 times 350 mm x 400 mm, it is the smallest solution for depaneling with a milling cutter. The machine is ideal for the production of prototypes, small batches and as a backup for inline production. The dynamic milling axis is installed above the 2 drawer shuttle system. The X and Y-axis are driven with linear motors whereas the Z-axis is pneumatic driven. What makes this system particularly interesting is the standard integration of a camera system for fiducial recognition and image-guided program generation.
