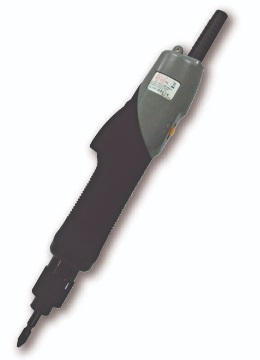

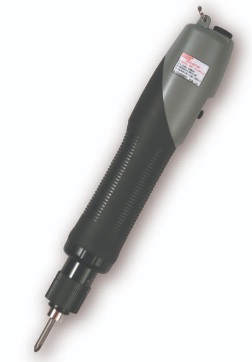

SK-BN500 Series
SK-BN500 Series
Medium Torque Electric Screwdriver
1.Adopting High-Functional Brushless Motor, marvelous lifespan and strong durability to repair and maintenance almost needless.
2.Smaller size, light weight, low noise-pollution, fashionable design, high stability and easy operation motor which gives the benefit of longer working-time. (3 years warranty on motor)
3.Brushless Motor has more stable torque output; it is best to fit for operating in clean-room circumstance and no worry of pollution will be arisen.
4.Best tool to assemble Watch, Laptop, Digital Camera, DVD Player, Cell Phone, Communication Equipment and High tech Products which need to be assembled in clean-room.
5.CE and ETL are optional
Description
Additional Info
Description
Product Specifications
| Model | SKD-BN512L | SKD-BN512P | SKD-BN512LF | SKD-BN512PF | SKD-BN517LF/PF | SKD-BN519L/P | |
| Input Voltage | DC24V or DC32V | ||||||
| Power Consumption | 55W | ||||||

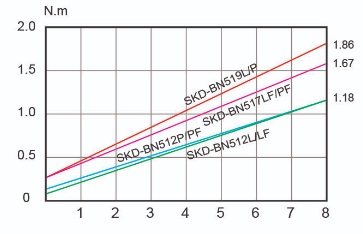

| Torque | (Kgf.cm) | 1.5~12 | 2~12 | 1.5~12 | 2~12 | 3~17 | 3~19 |
| (Lbf.in) | 1.33~10.44 | 1.77~10.44 | 1.33~10.44 | 1.77~10.44 | 2.57~14.78 | 2.57~16.46 | |
| (N.m) | 0.15~1.18 | 0.2~1.18 | 0.15~1.18 | 0.2~1.18 | 0.29~1.67 | 0.29~1.86 | |
| Repeatable Torque Accuracy (%) | ±3% | ||||||
| Torque Adjustment | Stepless | ||||||
| Free Speed (r.p.m) | HI | 1000 | 1000 | 2000 | 2000 | 2000 | 1000 |
| LO | 700 | 700 | 一 | 一 | 一 | 700 | |
| Screw Size Dia (mm) | Machine Screw | 1.6~3.0 | 1.6~3.0 | 1.6~3.0 | 1.6~3.0 | 1.6~3.0 | 2.3~3.5 |
| Tapping Screw | 1.6~2.6 | 1.6~2.6 | 1.6~2.6 | 1.6~2.6 | 1.6~2.6 | 2.3~3.0 | |
| Weight(g) | 520 | ||||||
| Length(mm) | 245 | ||||||
| ESD(Anti-Static) | V (With Black housing) | ||||||
| CE | V | ||||||
| RoHS | V | ||||||
| Bit Type | A=5mm Hex or B=6.35mm Hex or C=4mm Round or D=5mm Round | ||||||
