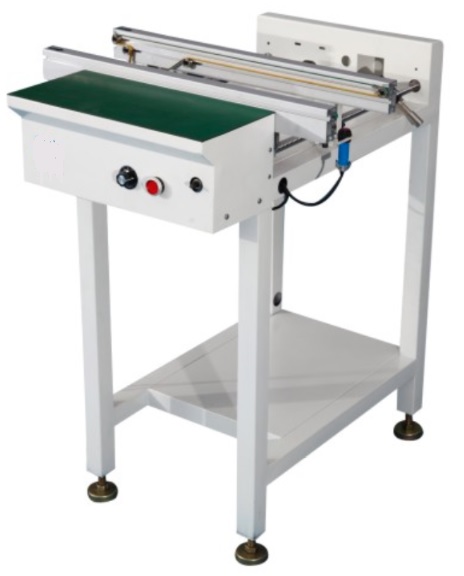

PCB LINKING CONVEYOR
Description
This unit is used to link between SMD machines or other board-handling units.
Features
- Modular design
- PLC control
- Stability enhanced by robust design’
- Smooth and parallel width adjustment
- Different lengths available upon request
- Bigger size PCB available upon request
- Different functions available upon request (cooling fan, lighting, dust cover, or worktable)
- Single lane or dual lane design suit wide range of requirements
- SMEMA compatible
Description
Additional Info
Description
Description
This unit is used to link between SMD machines or other board-handling units.
Features- Modular design
- PLC control
- Stability enhanced by robust design’
- Smooth and parallel width adjustment
- Different lengths available upon request
- Bigger size PCB available upon request
- Different functions available upon request (cooling fan, lighting, dust cover, or worktable)
- Single lane or dual lane design suit wide range of requirements
- SMEMA compatible
| Size | Machine Dimension (mm) | PCB Dimension (mm) | Magazine Size(mm) | Weight (kg) |
| 0.5M | 500*750*900 | 50-350 | 900±30 | 50 |
| 1M | 1000*750*900 | 50-350 | 900±30 | 80 |
